Haus Dej Disinfection System

Cov dej qab ntsev electro-chlorination system electrolyzes 3.5 feem pua ​​​​cov dej ntsev kom tsim tau 8000-10000ppm sodium hypochlorite tov, uas tuaj yeem siv rau kev tua kab mob ntawm cov nroj tsuag dej. Cov txheej txheem ntawm kev siv ntsev, dej thiab hluav taws xob ua cov khoom siv raw los tsim cov tshuaj sodium hypochlorite tsawg muaj ntau yam zoo xws li kev nyab xeeb, ruaj khov, tsis muaj coproduct, tsis tshua muaj suab nrov, yooj yim rau khaws cia, thiab qhov tseem ceeb tshaj plaws yog cov tshuaj tua kab mob zoo heev.

Kev vam khom rau cov thev naus laus zis thiab kev nplua nuj ntawm cov dej hiav txwv electro-chlorination, Sunrui muaj qhov txiaj ntsig zoo los tsim cov dej ntsev electro-chlorination system. Sunrui tau txais txhua theem ntawm kev tso dej huv huv rau kev tua kab mob ntawm sodium hypochlorite generator: 1Kg / h, 2Kg / h, 3Kg / h, 5Kg / h, 10Kg / h, 15Kg / h, 20Kg / h, 40Kg / h, 60Kg /h. Tsuas yog 5 xyoos xwb, Sunrui tau ua ntau tshaj 30 qhov dej cog cog xws li Juxian Water Plant, Baita Water Plant, Longquanyi District Northern Water Plant thiab hais txog.

Saltwater electro-chlorination system kuj tuaj yeem siv rau hauv cov chaw tsim hluav taws xob hauv av uas tsis muaj dej hiav txwv siv. Dissolving ntsev nrog dej los hloov dej hiav txwv rau electrolysis tuaj yeem tsim cov tshuaj sodium hypochlorite siab.

Technical zoo

● Cov tshuaj tsis muaj phom sij rau cov khoom siv raw thiab cov khoom. Nws yog txoj kev nyab xeeb tshaj plaws ntawm kev tua kab mob tsis tu ncua tam sim no.

● Advanced hydrogen kho tshuab uas ua raws li cov qauv kev nyab xeeb qib nuclear.

● Integrated module, yooj yim system nrog high-end configuration

● Serialization cov khoom ua tau raws li qhov xav tau sib txawv

● Ua tiav cov tswv cuab kev txawj ntse

Dej softening system

● Tsis siv neeg ua haujlwm

● Muti-txoj kev tswj valve technology

● CT100 zaub mov qib resin

● Hardness ntawm qhov hluav taws xob dej yog tsawg dua 0.03mmol/L

Cua txias thiab cua sov tshuab

● Tswj qhov kub ntawm qhov nkag

● Txhim kho electrolytic efficiency thiab khoom siv lub neej

● Txo kev siv hluav taws xob

● Txo cov tshuaj tua kab mob los ntawm cov khoom lag luam zoo

Ntsev dissolving system

● Salt dissolving pas dej tsuas yog 0.8m saum av, yooj yim rau kev soj ntsuam

● Tsis xav tau lub tshuab hloov ntsev, qhov system tsis ua haujlwm qis thiab txo qis kev ua haujlwm

● High dissolving efficiency

● Qhov chaw loj rau kev tu

Sodium hypochlorite generator

● DC lub zog siv tsawg dua lossis sib npaug li 4.3kwh/kg.Cl₂

● AC zog siv tsawg dua los yog sib npaug rau 5.0kwh/kg.Cl₂

● Acid tu ncua ncua ntau dua lossis sib npaug li 1 xyoos

● Dilute dej ntsev concentration 2.5-3.5 feem pua

● Kev sib xyaw ua ke ntawm cov tshuaj chlorine ua tau zoo Ntau dua lossis sib npaug ntawm 8000ppm

● Kev noj ntsev tsawg dua lossis sib npaug li 3.0kg/kg.Cl₂

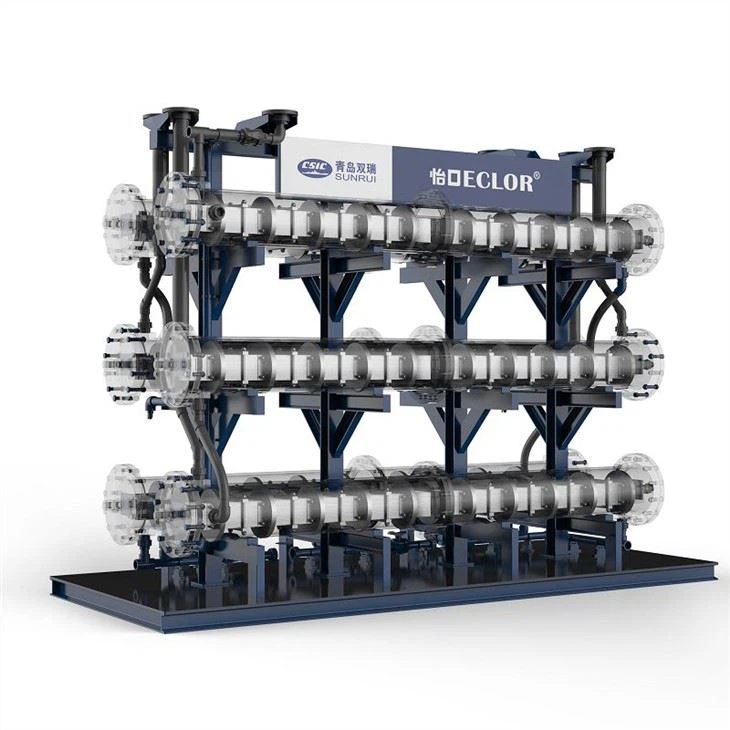

Electrolyzer

● Siv cov pob tshab acrylic ua cov khoom siv bode, nrog lub zog siab thiab kub ua haujlwm zoo

● Yooj yim los soj ntsuam sab hauv kev ua haujlwm

● Cov cuab yeej siv hluav taws xob tseem ceeb thiab kev siv hluav taws xob siab

● Anode khoom: Ti (GR1) nrog noble hlau oxide txheej

Anode lub neej lub sij hawm> 8 xyoo

Cov khoom siv cathode: Ti (GR1)

Cathode lub neej lub sij hawm> 20 xyoo

Hydraulic proportional mixing twj tso kua mis

● Qhov tseeb thiab ruaj khov piv, yuav tsis cuam tshuam los ntawm ib puag ncig sab nraud

● Cov txheej txheem yooj yim, qhov teeb meem tsawg tsawg thiab xav tau kev saib xyuas tsawg

● Tsis siv hluav taws xob tsav txo kev siv hluav taws xob
